Double jacket gasket machines offer precision crafting for high-performance gaskets. Built for durability and efficiency, they ensure consistent quality, meeting rigorous industrial standards with reliable output.
Double jacket gasket machines offer precision crafting for high-performance gaskets. Built for durability and efficiency, they ensure consistent quality, meeting rigorous industrial standards with reliable output.
Advantages of our Double Jacket Gasket Machine
Adjustable Multi-Stage Forming
Features progressive roller systems—pre-forming, edge-closing, and bending—with movable components that adapt to different gasket widths while maintaining structural integrity and material density.
Versatile Material Handling
The machine efficiently processes stainless steel strips and graphite/PTFE fillers, supporting various material thicknesses (3-4mm) to produce precise double-jacket gaskets in straight or circular forms based on application needs.
Enhanced Efficiency & Safety
Semi-automated operation reduces manual labor, while ergonomic designs (like guided strip feeders and protective gloves) prioritize operator safety during high-speed production.
How Double Jacket Gasket Machine Work

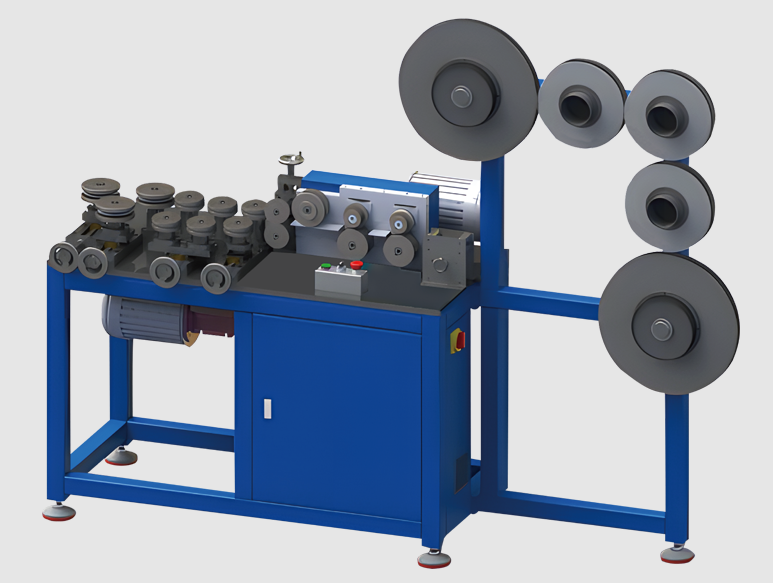

The Double Jacket Gasket Machine transforms stainless steel strips and graphite/PTFE filler materials into high-performance sealing gaskets through an integrated forming and winding process. It begins by feeding precision-cut steel strips through progressive roller systems—first pre-shaping the lower strip into a U-channel, then precisely inserting layered filler material before encapsulating it with the upper strip. Multi-stage rollers with adjustable tension control gradually form and compress the composite structure, first pre-closing then fully sealing the edges to create a uniform 3-4mm thick profile. For ring gaskets, a bending roller system with variable positioning allows radius adjustment to accommodate diameters from 150mm to 3500mm. Critical components like the servo-controlled feed mechanisms ensure consistent material alignment, while interchangeable forming rollers enable quick adaptation between different gasket widths. The semi-automated process balances speed with precision, allowing operators to switch between straight bar production for welded assemblies or pre-curved rings—all while maintaining tight tolerances through sequential forming stations that progressively shape the metal jacket without compromising the delicate filler core. This streamlined workflow delivers finished gaskets with superior compression resistance and sealing integrity for industrial applications.
