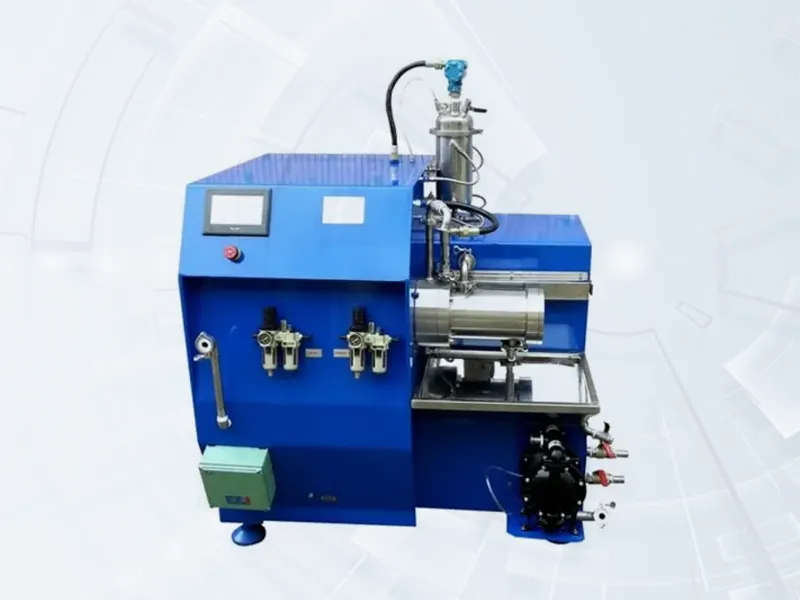

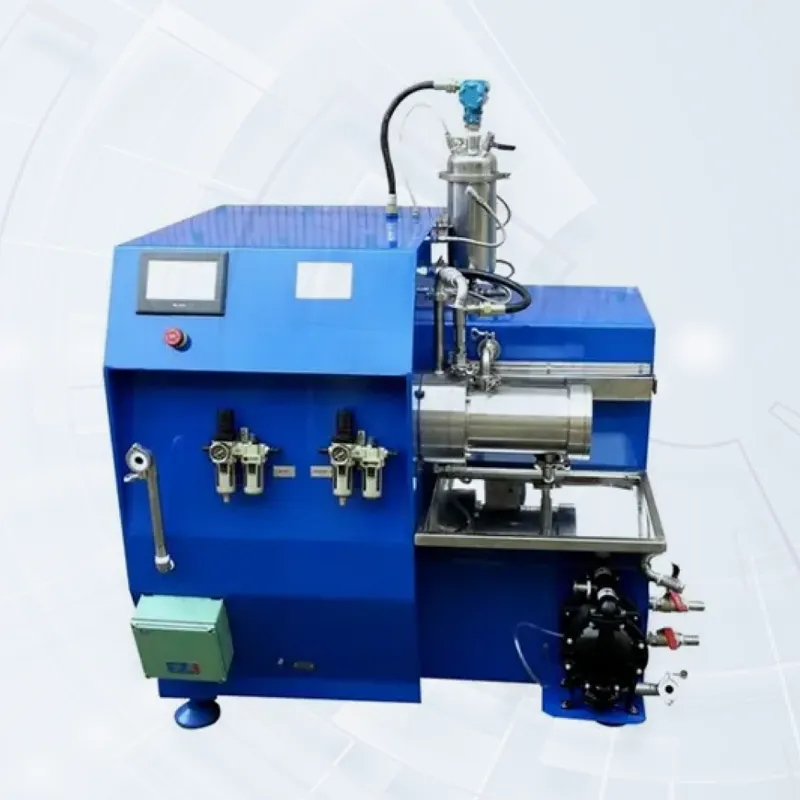

Laboratory Nano Sand Mill Series
https://www.infor-mill.com/products/laboratory-nano-sand-mill-series/
#laboratory #bead #mill
Experimental series sand mills are specially designed for research and development to meet the needs of small batch R&D testing of materials ranging from several kilograms to tens of kilograms. The equipment is flexible and simple, and has all the performance of large-scale production line equipment. The experimental results can be scaled up to the production line in... moreLaboratory Nano Sand Mill Series
https://www.infor-mill.com/products/laboratory-nano-sand-mill-series/
#laboratory #bead #mill
Experimental series sand mills are specially designed for research and development to meet the needs of small batch R&D testing of materials ranging from several kilograms to tens of kilograms. The equipment is flexible and simple, and has all the performance of large-scale production line equipment. The experimental results can be scaled up to the production line in equal proportions. With cumulative sales of hundreds of units, it has established cooperation with many new energy companies, scientific research institutions, universities, etc., and has been widely praised by customers.
Features of Laboratory Nano Sand Mill Series
1. A very small grinding cavity, suitable for rapid grinding of very small batches
2. Adopt self-developed high-performance double-end mechanical seal, safe, reliable and leak-free
3. The inlet and outlet pipe adopts a double-layer cooling structure, and the inner layer passes the material. Outer layercold water cooling, large cooling area, good cooling effect, sandwich Jacket cooling, mechanical seal cooling;
4. Using a special turbine/rod pin disperser, the grinding efficiency is extremely high and the particle size distribution is narrow
5. The submerged area adopts an all-ceramic design to ensure that the material has no metal pollution
6. Using PLC intelligence Control system, equipment operating status is clear at a glance
7. Good news for product development customers, it is in the early stage of experimental research and development, and is the most ideal model for laboratory nano wet grinding

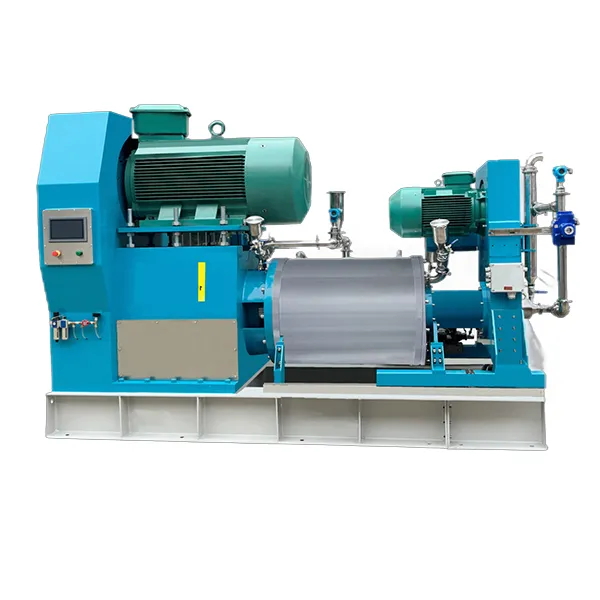

Dual Power Series Nano Sand Mill
https://www.infor-mill.com/products/dual-power-series-nano-sand-mill/
#dual-power #sand #mill
Grinding fineness: 100-1500nm
Zirconium oxide beads: 0.05-2.0mm
No clogging, no ball leakage
Features of Dual Power Series Nano Sand Mill
1. Adopt permanent magnet energy-saving motor and intelligent monitoring system , reduce energy consumption and save energy in all aspects
2. Automated PLC control system to create intelligent Neng Chemical Plant
3. High-stan... moreDual Power Series Nano Sand Mill
https://www.infor-mill.com/products/dual-power-series-nano-sand-mill/
#dual-power #sand #mill
Grinding fineness: 100-1500nm
Zirconium oxide beads: 0.05-2.0mm
No clogging, no ball leakage
Features of Dual Power Series Nano Sand Mill
1. Adopt permanent magnet energy-saving motor and intelligent monitoring system , reduce energy consumption and save energy in all aspects
2. Automated PLC control system to create intelligent Neng Chemical Plant
3. High-standard cooling, mechanical sealing and other systems ensure long-term and efficient operation of the production line
4. The grinding chamber is designed with all-ceramic materials
5. Advanced mesh-less separation can stably use grinding as low as 0.03mm Medium
6. high efficiency, good grinding effect, narrow particle size distribution

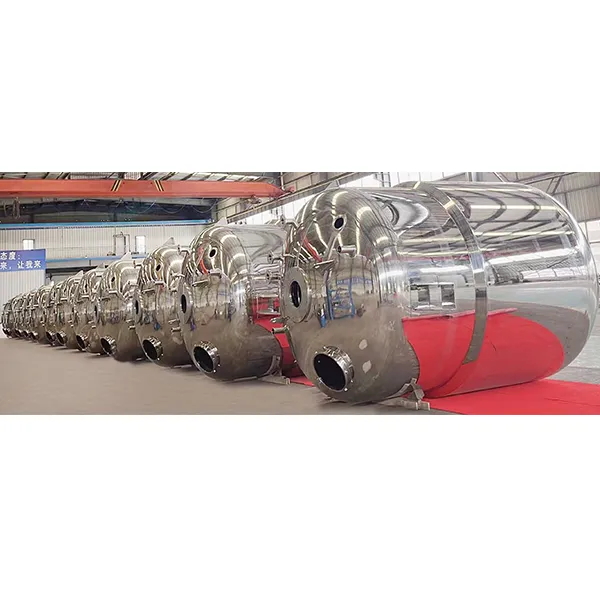

Dispersion Tank System
https://www.infor-mill.com/products/dispersion-tank-system/
#laboratory #high #speed #disperser
The company has always adhered to the independent research and development, design and production of tanks, processing and producing various production line tanks, including feeding tanks, dispersion tanks, homogenizing tanks, transfer tanks, iron removal tanks, finished products tanks, etc. The tank size ranges from experimental type 10-50L to production line type 10-40m², ... moreDispersion Tank System
https://www.infor-mill.com/products/dispersion-tank-system/
#laboratory #high #speed #disperser
The company has always adhered to the independent research and development, design and production of tanks, processing and producing various production line tanks, including feeding tanks, dispersion tanks, homogenizing tanks, transfer tanks, iron removal tanks, finished products tanks, etc. The tank size ranges from experimental type 10-50L to production line type 10-40m², with a monthly output of more than 100 sets.
Features of Dispersion Tank System
1. Made of stainless steel 304 material
2. High-precision cutting, seamless welding, high-gloss polishing
3. Pressure resistance, water leakage, vacuum and other testing to ensure product quality
4. The inner body adopts dual planetary mixers with high and low speed configurations to fully ensure the dispersion effect of materials.
5. A special coil cooling system is used on the outer body to achieve deep and comprehensive cooling, protect the tank and raw materials, and improve the use efficiency

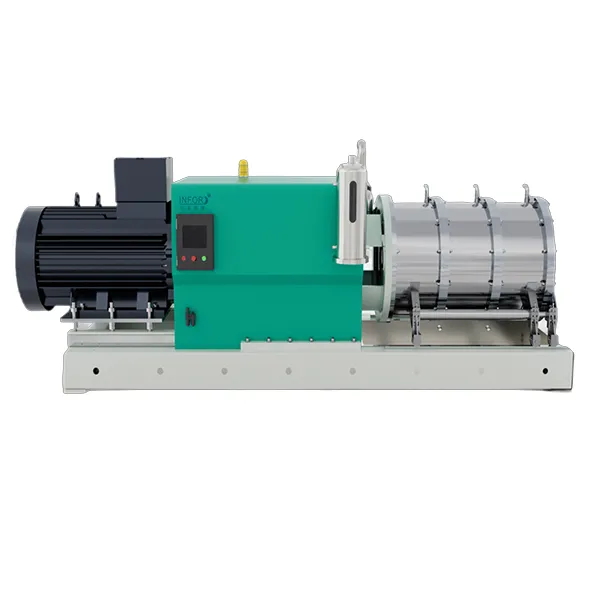

Direct Drive Sand Mill Series
https://www.infor-mill.com/products/direct-drive-sand-mill-series/
#dd #mill
Adopt direct drive structure, more optimized and simple design; solve the problem of industries where the sand mill is not easy to clean after use and has a high failure rate Pain point. The special and effective structural design improves the grinding efficiency and reduces the operating failure rate to almost zero. It is equipped with a permanent magnet synchronous motor, which has the... moreDirect Drive Sand Mill Series
https://www.infor-mill.com/products/direct-drive-sand-mill-series/
#dd #mill
Adopt direct drive structure, more optimized and simple design; solve the problem of industries where the sand mill is not easy to clean after use and has a high failure rate Pain point. The special and effective structural design improves the grinding efficiency and reduces the operating failure rate to almost zero. It is equipped with a permanent magnet synchronous motor, which has the characteristics of strong overload capacity, high power factor, high precision, and low noise decibels.
Features of Direct Drive Sand Mill Series
1. Adopting a direct drive structure, the design is more optimized and concise
2. Solve the industry pain points of sand mills that are difficult to clean after use and have high failure rates
3. The special and effective structural design improves the grinding efficiency and reduces the operation failure rate to almost is zero
4. Equipped with a permanent magnet synchronous motor, which has the characteristics of strong overload capacity, high power factor, high precision, and low noise decibels.
5. Equipped with dual carbon intelligent monitoring system and intelligent large screen for full monitoring.
6. Rod-needle disperser, with high grinding efficiency and narrow particle size distribution
7. Adopt self-developed high-performance double-end mechanical seal, which is safe, reliable and leak-free
8. The inlet and outlet pipes adopt a double-layer cooling structure, with the inner layer passing through the material and the outer layer Layer-through cold water cooling, large cooling area, good cooling effect, jacket cooling, mechanical seal cooling;
9. The pressure sensor can adjust the pressure in the cavity according to different materials. When the pressure is too high, it can automatically alarm and stop, making grinding safer and more reliable.
Temperature sensor. The temperature can be set by yourself. If the temperature is too high, it will automatically alarm and shut down.
Diaphragm/Battery Coating Slurry Nano Sand Mill Series
https://www.infor-mill.com/products/diaphragm-battery-coating-slurry-nano-sand-mill-series/
#battery #slurry #coating
Suitable for fine grinding of various new nanomaterials. It is the most ideal model in the electrode material industry. Its unique discharging method ensures the quality and safety of the product. stability. For materials with medium and high viscosity, it has considerable advantages. The discharge screen is placed at the ... moreDiaphragm/Battery Coating Slurry Nano Sand Mill Series
https://www.infor-mill.com/products/diaphragm-battery-coating-slurry-nano-sand-mill-series/
#battery #slurry #coating
Suitable for fine grinding of various new nanomaterials. It is the most ideal model in the electrode material industry. Its unique discharging method ensures the quality and safety of the product. stability. For materials with medium and high viscosity, it has considerable advantages. The discharge screen is placed at the rear, which solves the problem of easy clogging and difficult cleaning when discharging. The entire grinding chamber is easy to disassemble and clean.
Features of Diaphragm/Battery Coating Slurry Nano Sand Mill Series
1. Motor: permanent magnet synchronous motor/three-phase asynchronous motor
2. Transmission mode: The motor drives the pulley for transmission
3. Discharge method: centrifugal discharge
4. Grinding and dispersion structure: Rod pin type
5. Cooling method: The grinding barrel is cooled by double-layer cooling water circulation, and the machine seal coolant is cooled by an auxiliary ring
6. Control system: The human-machine interface is independently controlled, with material temperature, pressure control, cooling water temperature; machine seal liquid level pressure , temperature, liquid level control; real-time monitoring of motor temperature
7. Sound and light prompts: When a sensor detects an abnormality in the grinder, the grinder will stop running, the sound and light alarm will alarm, and the human-machine interface will Detailed alarm information is prompted
8. Grinding chamber: inner cylinder silicon carbide
9. Features: narrow particle size distribution, high efficiency, ultra-low energy consumption
Carbon Nanotube Slurry Nano Sand Mill Series
https://www.infor-mill.com/products/carbon-nanotube-slurry-nano-sand-mill-series/
#carbon #nanotube #slurry
Special sand mill for carbon nanotube slurry can use turbine, rod pin, and lamination The structure is suitable for small-scale test, pilot test and production line production. It has the characteristics of high efficiency, no material clogging and even dispersion. It has been used in many large enterprises in the industry, and has been adopt... moreCarbon Nanotube Slurry Nano Sand Mill Series
https://www.infor-mill.com/products/carbon-nanotube-slurry-nano-sand-mill-series/
#carbon #nanotube #slurry
Special sand mill for carbon nanotube slurry can use turbine, rod pin, and lamination The structure is suitable for small-scale test, pilot test and production line production. It has the characteristics of high efficiency, no material clogging and even dispersion. It has been used in many large enterprises in the industry, and has been adopted by many scientific research institutes and universities. It has nearly a hundred large-scale cooperation cases. The product operates stably and sells well overseas.
Features of Carbon Nanotube Slurry Nano Sand Mill Series
1. Adopt an external all-inclusive stainless steel structure to prevent materials from corroding the equipment during the production process
2. Adopt a special customized sealing structure, safe and leak-free
3. Special dynamic screen discharging ensures large flow and improves production efficiency
4 , designed for The rotor structure designed with carbon nanotube slurry has high efficiency and low energy consumption
5. On the basis of the same efficiency as other equipment, the NCT-90 nano sand mill occupies a smaller area
6. The simplified fuselage is explosion-proof and cracking treatment to ensure that the grinding process is safe and pollution-free
7. PLC control system, which can be configured with intelligent production lines to meet different customer needs
High-Performance Nano Sand Mills for Advanced Material Processing
https://www.infor-mill.com/products/
#sand #mill #working #principle
Introduction to Infor Nano Sand Mills
From lab-scale testing to high-volume industrial production, find the perfect sand mill solution designed for your specific application. Our new vertical sand mills are screen-free and block-free for increased efficiency. They utilize our industry-leading, energy-efficient nano-sand mill technology to achieve ultra-fine ... moreHigh-Performance Nano Sand Mills for Advanced Material Processing
https://www.infor-mill.com/products/
#sand #mill #working #principle
Introduction to Infor Nano Sand Mills
From lab-scale testing to high-volume industrial production, find the perfect sand mill solution designed for your specific application. Our new vertical sand mills are screen-free and block-free for increased efficiency. They utilize our industry-leading, energy-efficient nano-sand mill technology to achieve ultra-fine grinding and superior dispersion, backed by over 20 years of innovation and over 1,000 successful references.
Why Choose Infor Machinery for Your Nano Grinding Needs?
We don't just sell machines; we provide comprehensive production line solutions. Our strengths in R&D, manufacturing scale, and industry experience make us a reliable partner to leading global companies.
Industry Pioneer: The first to launch energy-saving sand mills in China, the first 1000L vertical sand mill, and the first direct-drive sand mill.
Outstanding professional capabilities: with more than 100 patents and more than 400 professional team members.
Large scale: Over 50,000 square meters of production facilities ensure reliable delivery.
Trusted by leaders: We have established successful partnerships with listed companies and state-owned enterprises.
Advanced Nano Sand Mills Applications Across Key Industries
Advanced Nano Sand Mills Applications Across Key Industries
Lithium Iron Phosphate (LFP): Achieve an ultra-fine and narrow particle size distribution for LFP materials, significantly enhancing battery capacity, cycle life, and rate performance.
Lithium Manganese Iron Phosphate (LMFP): Optimize the grinding and dispersion of LMFP to unlock higher energy density and voltage platforms while maintaining excellent material stability and processing consistency.
Conductive Agents: Effectively deagglomerate and disperse carbon nanotubes (CNTs) and graphene to form a stable, highly conductive network within the slurry, maximizing electronic conductivity.
Sodium Materials: Provide precision grinding for next-generation sodium-ion battery materials, enabling the development and large-scale production of cost-effective and high-performance energy storage solutions.
Battery Coating (Anode/Cathode Slurry): Ensure a flawless, uniform dispersion of active materials in battery slurries, leading to consistent electrode coatings for superior electrochemical performance and safety.
Diaphragm Coating: Produce highly stable, nano-scale ceramic (e.g., Alumina/Boehmite) slurries for separator coatings, significantly improving battery safety, thermal stability, and service life.
Pioneering Grinding Technology for Unmatched Energy Efficiency
As the first company in China to introduce energy-saving sand making machines, we are committed to innovation, helping you reduce operating costs and achieve sustainable development goals. Our permanent magnet energy-saving motors help you lower energy consumption and reduce costs. Our vertical sand mills feature a direct-drive design and a screenless structure, eliminating material blockage and eliminating the need for coarse grinding. This eliminates blockage issues, streamlines process steps, and achieves higher grinding efficiency and precision. For fineness testing, we've introduced the Malvern 3000, enabling intelligent production.
FAQs of Nano Sand Mills
How can Infor's energy-saving sand mill reduce my operating costs?
Our energy-saving vertical sand mill uses a permanent magnet energy-saving motor and a direct-drive design. It also features a screenless construction, eliminating material clogging and the need for coarse grinding. This eliminates the problem of material clogging, reduces process steps, and results in higher grinding efficiency and precision.
Do you offer a clear upgrade path from R&D to mass production?
We have a dedicated team to assist you with everything from single machines to supporting facilities and overall design solutions.
What kind of after-sales service does Infor provide, including installation, training, and technical support?
Infor offers a one-year warranty and professional on-site installation, training, and technical support.
If our requirements are unique, can you customize a machine or an entire production line?
Our dedicated engineering team can tailor a machine or entire production line to meet your specific needs.
What is the typical final particle size (e.g., D90) I can achieve using your nano sand mill?
30 nanometers
